Bone Screws Manufacturer in India
Bone Screw
Bone screws are essential components of Orthopedic surgery, providing stable fixation for fractures, osteotomies, and reconstructive procedures. These screws are engineered with precision, ensuring optimal grip and stability within the bone structure. They are made of high-quality materials like titanium or stainless steel that offer exceptional durability and biocompatibility, reducing the risk of rejection or complications. Their design allows for efficient load distribution, which helps in the healing process and minimizes post-surgical discomfort for patients.
Bone screws are available in various types of sizes and thread patterns, making them suitable for a wide range of fracture types and anatomical locations. Whether used alone or as part of a larger fixation system, they play an important role in restoring bone integrity and maintaining alignment during recovery. Their corrosion resistance and long-term durability ensure long-term results, making them an excellent choice for Orthopedic surgeons handling trauma cases, spinal surgeries, and joint reconstructions.
BONE SCREW

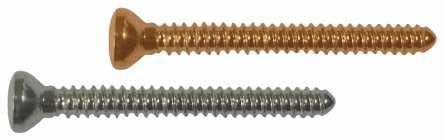

1. Mini Cortex Screw Dia - 1.5mm
Minitorinillo de cortical de 1,5 mm de diámetro.
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 1.5mm |
| Drill for Threaded Hole | 1.1mm |
| Drill for Gliding Hole | 1.6mm |
| Core Diameter | 1.0mm |
| Hexagonal Socket | 1.5mm |
| Head Diameter | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 601.06-Ti | 601.06 | 06mm |
| 601.07-Ti | 601.07 | 07mm |
| 601.08-Ti | 601.08 | 08mm |
| 601.09-Ti | 601.09 | 09mm |
| 601.10-Ti | 601.10 | 10mm |
| 601.11-Ti | 601.11 | 11mm |
| 601.12-Ti | 601.12 | 12mm |
| 601.14-Ti | 601.14 | 14mm |
| 601.16-Ti | 601.16 | 16mm |
| 601.18-Ti | 601.18 | 18mm |
| 601.20-Ti | 601.20 | 20mm |
| 601.22-Ti | 601.22 | 22mm |
| 601.24-Ti | 601.24 | 24mm |

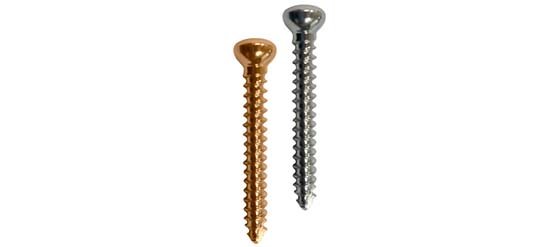

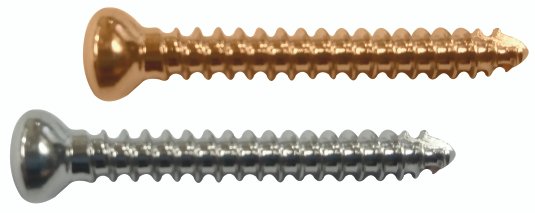

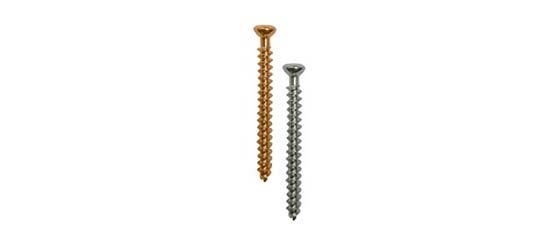

2. Mini Cortex Screw Dia - 2.0mm
Minitornillo de cortical de 2,0 mm dediámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 1.5mm |
| Drill for Threaded Hole | 1.1mm |
| Drill for Gliding Hole | 1.6mm |
| Core Diameter | 1.0mm |
| Hexagonal Socket | 1.5mm |
| Head Diameter | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 601.06-Ti | 601.06 | 06mm |
| 601.07-Ti | 601.07 | 07mm |
| 601.08-Ti | 601.08 | 08mm |
| 601.09-Ti | 601.09 | 09mm |
| 601.10-Ti | 601.10 | 10mm |
| 601.11-Ti | 601.11 | 11mm |
| 601.12-Ti | 601.12 | 12mm |
| 601.14-Ti | 601.14 | 14mm |
| 601.16-Ti | 601.16 | 16mm |
| 601.18-Ti | 601.18 | 18mm |
| 601.20-Ti | 601.20 | 20mm |
| 601.22-Ti | 601.22 | 22mm |
| 601.24-Ti | 601.24 | 24mm |
3. Mini Cortex Screw Dia - 2.7mm
Minitornillo de cortical de 2,7 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 2.7mm |
| Drill for Threaded Hole | 2.0mm |
| Drill for Gliding Hole | 2.7mm |
| Core Diameter | 1.9mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 603.06-Ti | 603.06 | 06mm |
| 603.08-Ti | 603.08 | 08mm |
| 603.10-Ti | 603.10 | 10mm |
| 603.12-Ti | 603.12 | 12mm |
| 603.14-Ti | 603.14 | 14mm |
| 603.16-Ti | 603.16 | 16mm |
| 603.18-Ti | 603.18 | 18mm |
| 603.20-Ti | 603.20 | 20mm |
| 603.22-Ti | 603.22 | 22mm |
| 603.20-Ti | 603.20 | 20mm |
| 603.24-Ti | 603.24 | 24mm |
| 603.26-Ti | 603.26 | 26mm |
| 603.28-Ti | 603.28 | 28mm |
| 603.30-Ti | 603.30 | 30mm |

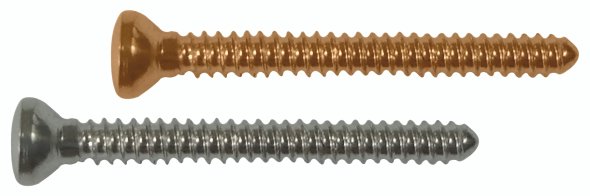

4. Cortex Screw Dia - 3.5mm
Diámetro del tornillo de cortical - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 604.10-Ti | 604.10 | 10mm |
| 604.12-Ti | 604.12 | 12mm |
| 604.14-Ti | 604.14 | 14mm |
| 604.16-Ti | 604.16 | 16mm |
| 604.18-Ti | 604.18 | 18mm |
| 604.20-Ti | 604.20 | 20mm |
| 604.22-Ti | 604.22 | 22mm |
| 604.24-Ti | 604.24 | 24mm |
| 604.26-Ti | 604.26 | 26mm |
| 604.28-Ti | 603.28 | 28mm |
| 604.30-Ti | 604.30 | 30mm |
| 604.32-Ti | 604.32 | 32mm |
| 604.34-Ti | 603.34 | 34mm |
| 604.36-Ti | 604.36 | 36mm |
| 604.38-Ti | 604.38 | 38mm |
| 604.40-Ti | 604.40 | 40mm |
| 604.45-Ti | 604.45 | 45mm |
| 604.50-Ti | 604.50 | 50mm |
| 604.55-Ti | 604.55 | 55mm |
| 604.60-Ti | 604.60 | 60mm |
5. Cortex Screw Dia - 3.5mm - Self Tapping
Cortex Screw Dia - 3.5mm - Autorroscante
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 604.10ST-Ti | 604.10ST | 10mm |
| 604.12ST-Ti | 604.12ST | 12mm |
| 604.14ST-Ti | 604.14ST | 14mm |
| 604.16ST-Ti | 604.16ST | 16mm |
| 604.18ST-Ti | 604.18ST | 18mm |
| 604.20ST-Ti | 604.20ST | 20mm |
| 604.22ST-Ti | 604.22ST | 22mm |
| 604.24ST-Ti | 604.24ST | 24mm |
| 604.26ST-Ti | 604.26ST | 26mm |
| 604.28ST-Ti | 603.28ST | 28mm |
| 604.30ST-Ti | 604.30ST | 30mm |
| 604.32ST-Ti | 604.32ST | 32mm |
| 604.34ST-Ti | 603.34ST | 34mm |
| 604.36ST-Ti | 604.36ST | 36mm |
| 604.38ST-Ti | 604.38ST | 38mm |
| 604.40ST-Ti | 604.40ST | 40mm |
| 604.45ST-Ti | 604.45ST | 45mm |
| 604.50ST-Ti | 604.50ST | 50mm |
| 604.55ST-Ti | 604.55ST | 55mm |
| 604.60ST-Ti | 604.60ST | 60mm |
6. Cancellous Screws Dia 2.7mm
Diámetro del tornillo de esponjosa: 2,7 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 2.7mm |
| Drill for Threaded Hole | 2.0mm |
| Drill for Gliding Hole | 2.7mm |
| Core Diameter | 1.9mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 606.2706-Ti | 606.2706 | 10mm |
| 606.2708-Ti | 606.2708 | 12mm |
| 606.2710-Ti | 606.2710 | 14mm |
| 606.2712-Ti | 606.2712 | 16mm |
| 606.2714-Ti | 606.2714 | 18mm |
| 606.2716-Ti | 606.2716 | 20mm |
| 606.2718-Ti | 606.2718 | 22mm |
| 606.2720-Ti | 606.2720 | 24mm |
| 606.2722-Ti | 606.2722 | 26mm |
| 606.2724-Ti | 606.2724 | 28mm |
| 606.2726-Ti | 606.2726 | 30mm |
| 606.2728-Ti | 606.2728 | 35mm |
| 606.2730-Ti | 606.2730 | 40mm |
7. Cortex Screw Self Tapping Dia - 4.5mm
Tornillo Cortex Diámetro autorroscante - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 3.2mm |
| Drill for Gliding Hole | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 605.10ST-Ti | 605.10ST | 10mm |
| 605.12ST-Ti | 605.12ST | 12mm |
| 605.14ST-Ti | 605.14ST | 14mm |
| 605.16ST-Ti | 605.16ST | 16mm |
| 605.18ST-Ti | 605.18ST | 18mm |
| 605.20ST-Ti | 605.20ST | 20mm |
| 605.22ST-Ti | 605.22ST | 22mm |
| 605.24ST-Ti | 605.24ST | 24mm |
| 605.26ST-Ti | 605.26ST | 26mm |
| 605.28ST-Ti | 605.28ST | 28mm |
| 605.30ST-Ti | 605.30ST | 30mm |
| 605.32ST-Ti | 605.32ST | 32mm |
| 605.34ST-Ti | 605.34ST | 34mm |
| 605.36ST-Ti | 605.36ST | 36mm |
| 605.38ST-Ti | 605.38ST | 38mm |
| 605.40ST-Ti | 605.40ST | 40mm |
| 605.42ST-Ti | 605.42ST | 42mm |
| 605.44ST-Ti | 605.44ST | 44mm |
| 605.46ST-Ti | 605.46ST | 46mm |
| 605.48ST-Ti | 605.48ST | 48mm |
| 605.50ST-Ti | 605.50ST | 50mm |
| 605.52ST-Ti | 605.52ST | 52mm |
| 605.54ST-Ti | 605.54ST | 54mm |
| 605.58ST-Ti | 605.58ST | 58mm |
| 605.60ST-Ti | 605.60ST | 60mm |
| 605.62ST-Ti | 605.62ST | 62mm |
| 605.64ST-Ti | 605.64ST | 64mm |
| 605.66ST-Ti | 605.66ST | 66mm |
| 605.68ST-Ti | 605.68ST | 68mm |
| 605.70ST-Ti | 605.70ST | 70mm |
| 605.72ST-Ti | 605.72ST | 72mm |
| 605.74ST-Ti | 605.74ST | 74mm |

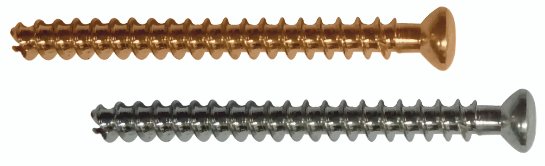

8. Cancellous Screw Dia - 3.5mm
Diámetro del tornillo de esponjosa: 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 606.10-Ti | 606.10 | 10mm |
| 606.12-Ti | 606.12 | 12mm |
| 606.14-Ti | 606.14 | 14mm |
| 606.16-Ti | 606.16 | 16mm |
| 606.18-Ti | 606.18 | 18mm |
| 606.20-Ti | 606.20 | 20mm |
| 606.22-Ti | 606.22 | 22mm |
| 606.24-Ti | 606.24 | 24mm |
| 606.26-Ti | 606.26 | 26mm |
| 606.28-Ti | 606.28 | 28mm |
| 606.30-Ti | 606.30 | 30mm |
| 606.35-Ti | 606.35 | 35mm |
| 606.40-Ti | 606.40 | 40mm |
| 606.45-Ti | 606.45 | 45mm |
| 606.50-Ti | 606.50 | 50mm |
| 606.55-Ti | 606.55 | 55mm |
| 606.60-Ti | 606.60 | 60mm |

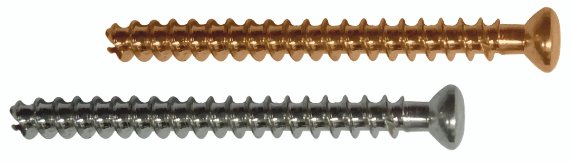

9. Cancellous Screws Full -Thread Dia - 4.0mm
Tornillos para esponjosa de diámetro de rosca completa - 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 607.10-Ti | 607.10 | 10mm |
| 607.12-Ti | 607.12 | 12mm |
| 607.14-Ti | 607.14 | 14mm |
| 607.16-Ti | 607.16 | 16mm |
| 607.18-Ti | 607.18 | 18mm |
| 607.20-Ti | 607.20 | 20mm |
| 607.22-Ti | 607.22 | 22mm |
| 607.24-Ti | 607.24 | 24mm |
| 607.26-Ti | 607.26 | 26mm |
| 607.28-Ti | 607.28 | 28mm |
| 607.30-Ti | 607.30 | 30mm |
| 607.35-Ti | 607.35 | 35mm |
| 607.40-Ti | 607.40 | 40mm |
| 607.45-Ti | 607.45 | 45mm |
| 607.50-Ti | 607.50 | 50mm |
| 607.55-Ti | 607.55 | 55mm |
| 607.60-Ti | 607.60 | 60mm |
| 607.65-Ti | 607.65 | 65mm |
| 607.70-Ti | 607.70 | 70mm |
| 607.75-Ti | 607.75 | 75mm |
| 607.80-Ti | 607.80 | 80mm |

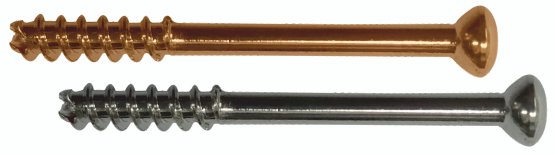

10. Cancellous Bone Screws Short - Thread Dia - 4.0mm
Tornillos para hueso esponjoso cortos - Diámetro de rosca - 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Drill for Threaded Hole | 2.5mm |
| Drill for Gliding Hole | 1.9mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 6.0mm |
| Head Diameter | 2.4mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 608.10-Ti | 608.10 | 10mm |
| 608.12-Ti | 608.12 | 12mm |
| 608.14-Ti | 608.14 | 14mm |
| 608.16-Ti | 608.16 | 16mm |
| 608.18-Ti | 608.18 | 18mm |
| 608.20-Ti | 608.20 | 20mm |
| 608.22-Ti | 608.22 | 22mm |
| 608.24-Ti | 608.24 | 24mm |
| 608.26-Ti | 608.26 | 26mm |
| 608.28-Ti | 608.28 | 28mm |
| 608.30-Ti | 608.30 | 30mm |
| 608.35-Ti | 608.35 | 35mm |
| 608.40-Ti | 608.40 | 40mm |
| 608.45-Ti | 608.45 | 45mm |
| 608.50-Ti | 608.50 | 50mm |
| 608.55-Ti | 608.55 | 55mm |
| 608.60-Ti | 608.60 | 60mm |
| 608.65-Ti | 608.65 | 65mm |
| 608.70-Ti | 608.70 | 70mm |
| 608.75-Ti | 608.75 | 75mm |
| 608.80-Ti | 608.80 | 80mm |
11. Cancellous Screws Full-Thread Dia 4.5mm
Tornillos para esponjosa con rosca completa de 4,5 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 2.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 607.4520-Ti | 607.4520 | 20mm |
| 607.4522-Ti | 607.4522 | 22mm |
| 607.4524-Ti | 607.4524 | 24mm |
| 607.4526-Ti | 607.4526 | 26mm |
| 607.4528-Ti | 607.4528 | 28mm |
| 607.4530-Ti | 607.4530 | 30mm |
| 607.4535-Ti | 607.4535 | 35mm |
| 607.4540-Ti | 607.4540 | 40mm |
| 607.4545-Ti | 607.4545 | 45mm |
| 607.4550-Ti | 607.4550 | 50mm |
| 607.4555-Ti | 607.4555 | 55mm |
| 607.4560-Ti | 607.4560 | 60mm |
| 607.4565-Ti | 607.4565 | 65mm |
| 607.4570-Ti | 607.4570 | 70mm |
| 607.4575-Ti | 607.4575 | 75mm |
| 607.4580-Ti | 607.4580 | 80mm |
12. Cancellous Bone Screw Short - Thread Dia 4.5mm
Tornillo corto para hueso esponjoso - Rosca de 4,5 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 2.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 3.4mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 608.4520-Ti | 608.4520 | 20mm |
| 608.4522-Ti | 608.4522 | 22mm |
| 608.4524-Ti | 608.4524 | 24mm |
| 608.4526-Ti | 608.4526 | 26mm |
| 608.4528-Ti | 608.4528 | 28mm |
| 608.4530-Ti | 608.4530 | 30mm |
| 608.4535-Ti | 608.4535 | 35mm |
| 608.4540-Ti | 608.4540 | 40mm |
| 608.4545-Ti | 608.4545 | 45mm |
| 608.4550-Ti | 608.4550 | 50mm |
| 608.4555-Ti | 608.4555 | 55mm |
| 608.4560-Ti | 607.4560 | 60mm |
| 608.4565-Ti | 608.4565 | 65mm |
| 608.4570-Ti | 608.4570 | 70mm |
| 608.4575-Ti | 608.4575 | 75mm |
| 608.4580-Ti | 608.4580 | 80mm |
13. Cancellous Screws 16mm Thread Dia - 6.5mm
Tornillos para esponjosa de 16 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 609.30-Ti | 609.30 | 30mm |
| 609.35-Ti | 609.35 | 35mm |
| 609.40-Ti | 609.40 | 40mm |
| 609.45-Ti | 609.45 | 45mm |
| 609.50-Ti | 609.50 | 50mm |
| 609.55-Ti | 609.55 | 55mm |
| 609.60-Ti | 609.60 | 60mm |
| 609.65-Ti | 609.65 | 65mm |
| 609.70-Ti | 609.70 | 70mm |
| 609.75-Ti | 609.75 | 75mm |
| 609.80-Ti | 609.80 | 80mm |
| 609.85-Ti | 609.85 | 85mm |
| 609.90-Ti | 609.90 | 90mm |
| 609.95-Ti | 609.95 | 95mm |
| 609.100-Ti | 609.100 | 100mm |
| 609.105-Ti | 609.105 | 105mm |
| 609.105-Ti | 609.105 | 110mm |
14. Cancellous Screws 32mm Thread Dia - 6.5mm
Tornillos para esponjosa de 32 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 609.45-Ti | 609.45 | 45mm |
| 609.50-Ti | 609.50 | 50mm |
| 609.55-Ti | 609.55 | 55mm |
| 609.60-Ti | 609.60 | 60mm |
| 609.65-Ti | 609.65 | 65mm |
| 609.70-Ti | 609.70 | 70mm |
| 609.75-Ti | 609.75 | 75mm |
| 609.80-Ti | 609.80 | 80mm |
| 609.85-Ti | 609.85 | 85mm |
| 609.90-Ti | 609.90 | 90mm |
| 609.95-Ti | 609.95 | 95mm |
| 609.100-Ti | 609.100 | 100mm |
| 609.105-Ti | 609.105 | 105mm |
| 609.110-Ti | 609.110 | 110mm |
15. Cancellous Screws Full Thread Dia - 6.5mm
Tornillos para esponjosa Diámetro de rosca completa: 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Drill Bit For Shaft | 4.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 611.25-Ti | 611.25 | 25mm |
| 611.30-Ti | 611.30 | 30mm |
| 611.35-Ti | 611.35 | 35mm |
| 611.40-Ti | 611.40 | 40mm |
| 611.45-Ti | 611.45 | 45mm |
| 611.50-Ti | 611.50 | 50mm |
| 611.55-Ti | 611.55 | 55mm |
| 611.60-Ti | 611.60 | 60mm |
| 611.65-Ti | 611.65 | 65mm |
| 611.70-Ti | 611.70 | 70mm |
| 611.75-Ti | 611.75 | 75mm |
| 611.80-Ti | 611.80 | 80mm |
| 611.85-Ti | 611.85 | 85mm |
| 611.90-Ti | 611.90 | 90mm |
| 611.95-Ti | 611.95 | 95mm |
| 611.100-Ti | 611.100 | 100mm |
| 611.105-Ti | 611.105 | 105mm |
| 611.110-Ti | 611.110 | 110mm |
16. Malleolar Screws Dia - 4.5mm
Tornillos maleolares de diámetro - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill for Threaded Hole | 3.2mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Drill Bit For Shaft | 3.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 612.25-Ti | 612.25 | 25mm |
| 612.30-Ti | 612.30 | 30mm |
| 612.35-Ti | 612.35 | 35mm |
| 612.40-Ti | 612.40 | 40mm |
| 611.45-Ti | 611.45 | 45mm |
| 612.50-Ti | 612.50 | 50mm |
| 612.55-Ti | 612.55 | 55mm |
| 612.60-Ti | 612.60 | 60mm |
| 612.65-Ti | 612.65 | 65mm |
| 612.70-Ti | 612.70 | 70mm |
| 612.75-Ti | 612.75 | 75mm |
| 612.80-Ti | 612.80 | 80mm |
| 612.85-Ti | 612.85 | 85mm |
| 612.90-Ti | 612.90 | 90mm |
| 612.95-Ti | 612.95 | 95mm |
| 612.100-Ti | 612.100 | 100mm |
| 612.105-Ti | 612.105 | 105mm |
| 612.110-Ti | 612.110 | 110mm |
17. Washers For Cancellous Screws
Arandelas para tornillos de esponjosa
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 613.01-Ti | 613.01 | BIG |
| 613.02-Ti | 613.02 | SMALL |

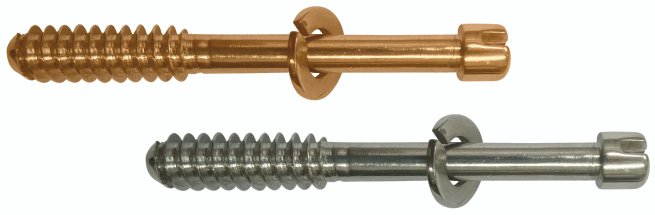

18. Ashnis Screw
Tornillo Ashnis
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 614.65-Ti | 614.65 | 65mm |
| 614.70-Ti | 614.70 | 70mm |
| 614.75-Ti | 614.75 | 75mm |
| 614.80-Ti | 614.80 | 80mm |
| 614.85-Ti | 614.85 | 85mm |
| 614.90-Ti | 614.90 | 90mm |
| 614.95-Ti | 614.95 | 95mm |
| 614.100-Ti | 614.100 | 100mm |
| 614.105-Ti | 614.105 | 105mm |
| 614.110-Ti | 614.110 | 110mm |
19. Large Cannulated Cancellous Screws 16mm Thread Dia - 7.0mm
Tornillos canulados grandes para esponjosa de 16 mm de diámetro de rosca - 7,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 7.0mm |
| Drill for Threaded Hole | 4.5mm |
| Core Diameter | 4.5mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Cannulation | 2.1mm |
| Guide Wire | 2.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 615.30-Ti | 615.30 | 30mm |
| 615.35-Ti | 615.35 | 35mm |
| 615.40-Ti | 615.40 | 40mm |
| 615.45-Ti | 615.45 | 45mm |
| 615.50-Ti | 615.50 | 50mm |
| 615.55-Ti | 615.55 | 55mm |
| 615.60-Ti | 615.60 | 60mm |
| 615.65-Ti | 615.65 | 65mm |
| 615.70-Ti | 615.70 | 70mm |
| 615.75-Ti | 615.75 | 75mm |
| 615.80-Ti | 615.80 | 80mm |
| 615.85-Ti | 615.85 | 85mm |
| 615.90-Ti | 615.90 | 90mm |
| 615.95-Ti | 615.95 | 95mm |
| 615.100-Ti | 615.100 | 100mm |
| 615.105-Ti | 615.105 | 105mm |
| 615.110-Ti | 615.110 | 110mm |
| 615.115-Ti | 615.115 | 115mm |
| 615.120-Ti | 615.120 | 120mm |
| 615.125-Ti | 615.125 | 125mm |
| 615.130-Ti | 615.130 | 130mm |
20. Large Cannulated Cancellous Screws 32mm Thread Dia - 7.0mm
Tornillos canulados grandes para esponjosa de 32 mm de diámetro de rosca - 7,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 7.0mm |
| Drill for Threaded Hole | 4.5mm |
| Core Diameter | 4.5mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Shaft Diameter | 4.5mm |
| Cannulation | 2.1mm |
| Guide Wire | 2.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 616.30-Ti | 616.30 | 30mm |
| 616.35-Ti | 616.35 | 35mm |
| 616.40-Ti | 616.40 | 40mm |
| 616.45-Ti | 616.45 | 45mm |
| 616.50-Ti | 616.50 | 50mm |
| 616.55-Ti | 616.55 | 55mm |
| 616.60-Ti | 616.60 | 60mm |
| 616.65-Ti | 616.65 | 65mm |
| 616.70-Ti | 616.70 | 70mm |
| 616.75-Ti | 616.75 | 75mm |
| 616.80-Ti | 616.80 | 80mm |
| 616.85-Ti | 616.85 | 85mm |
| 616.90-Ti | 616.90 | 90mm |
| 616.95-Ti | 616.95 | 95mm |
| 616.100-Ti | 616.100 | 100mm |
| 616.105-Ti | 616.105 | 105mm |
| 616.110-Ti | 616.110 | 110mm |
| 616.115-Ti | 616.115 | 115mm |
| 616.120-Ti | 616.120 | 120mm |
| 616.125-Ti | 616.125 | 125mm |
| 616.130-Ti | 616.130 | 130mm |
21. Small Cannulated Screw Full Thread Dia - 3.5mm
Tornillo canulado pequeño Diámetro de rosca completa: 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Shaft Diameter | 2.5mm |
| Cannulation | 1.3mm |
| Guide Wire | 1.2mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 683.10-Ti | 683.10 | 10mm |
| 683.12-Ti | 683.12 | 12mm |
| 683.14-Ti | 683.14 | 14mm |
| 683.16-Ti | 683.16 | 16mm |
| 683.18-Ti | 683.18 | 18mm |
| 683.20-Ti | 683.20 | 20mm |
| 683.22-Ti | 683.22 | 22mm |
| 683.24-Ti | 683.24 | 24mm |
| 683.26-Ti | 683.26 | 26mm |
| 683.28-Ti | 683.28 | 28mm |
| 683.30-Ti | 683.30 | 30mm |
| 683.32-Ti | 683.32 | 32mm |
| 683.34-Ti | 683.34 | 34mm |
| 683.36-Ti | 683.36 | 36mm |
| 683.38-Ti | 683.38 | 38mm |
| 683.40-Ti | 683.40 | 40mm |
| 683.42-Ti | 683.42 | 42mm |
| 683.44-Ti | 683.44 | 44mm |
| 683.46-Ti | 683.46 | 46mm |
| 683.48-Ti | 683.48 | 48mm |
| 683.50-Ti | 683.50 | 50mm |
22. Small Cannulated Screw Short Thread Dia - 3.5mm
Tornillo canulado pequeño Diámetro de rosca corta - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill for Threaded Hole | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Shaft Diameter | 2.5mm |
| Cannulation | 1.3mm |
| Guide Wire | 1.2mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 684.10-Ti | 684.10 | 10mm |
| 684.12-Ti | 684.12 | 12mm |
| 684.14-Ti | 684.14 | 14mm |
| 684.16-Ti | 684.16 | 16mm |
| 684.18-Ti | 684.18 | 18mm |
| 684.20-Ti | 684.20 | 20mm |
| 684.22-Ti | 684.22 | 22mm |
| 684.24-Ti | 684.24 | 24mm |
| 684.26-Ti | 684.26 | 26mm |
| 684.28-Ti | 684.28 | 28mm |
| 684.30-Ti | 684.30 | 30mm |
| 684.32-Ti | 684.32 | 32mm |
| 684.34-Ti | 684.34 | 34mm |
| 684.36-Ti | 684.36 | 36mm |
| 684.38-Ti | 684.38 | 38mm |
| 684.40-Ti | 684.40 | 40mm |
| 684.42-Ti | 684.42 | 42mm |
| 684.44-Ti | 684.44 | 44mm |
| 684.46-Ti | 684.46 | 46mm |
| 684.48-Ti | 684.48 | 48mm |
| 684.50-Ti | 684.50 | 50mm |
23. Small Cannulated Screw Full Thread Dia 4.0mm
Tornillo canulado pequeño Rosca completa Diámetro 4,0 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Cannulation | 1.35mm |
| Guide Wire | 1.25mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 901.20-Ti | 901.20 | 20mm |
| 901.22-Ti | 901.22 | 22mm |
| 901.24-Ti | 901.24 | 24mm |
| 901.26-Ti | 901.26 | 26mm |
| 901.20-Ti | 901.20 | 20mm |
| 901.28-Ti | 901.28 | 28mm |
| 901.30-Ti | 901.30 | 30mm |
| 901.32-Ti | 901.32 | 32mm |
| 901.34-Ti | 901.34 | 34mm |
| 901.36-Ti | 901.36 | 36mm |
| 901.38-Ti | 901.38 | 38mm |
| 901.40-Ti | 901.40 | 40mm |
| 901.42-Ti | 901.42 | 42mm |
| 901.44-Ti | 901.44 | 44mm |
| 901.46-Ti | 901.46 | 46mm |
| 901.48-Ti | 901.48 | 48mm |
| 901.50-Ti | 901.50 | 50mm |
| 901.52-Ti | 901.52 | 52mm |
| 901.54-Ti | 901.54 | 54mm |
| 901.56-Ti | 901.56 | 56mm |
| 901.58-Ti | 901.58 | 58mm |
| 901.60-Ti | 901.60 | 60mm |
| 901.62-Ti | 901.62 | 62mm |
| 901.64-Ti | 901.64 | 64mm |
| 901.66-Ti | 901.66 | 66mm |
| 901.68-Ti | 901.68 | 68mm |
| 901.70-Ti | 901.70 | 70mm |
| 901.72-Ti | 901.72 | 72mm |
| 901.74-Ti | 901.74 | 74mm |
24. Small Cannulated Screw Short Thread Dia 4.0mm
Tornillo canulado pequeño Rosca corta de 4,0 mm de diámetro
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.0mm |
| Drill Bit For Threaded Hole | 2.7mm |
| Shaft Diameter | 2.7mm |
| Core Diameter | 2.5mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 5.0mm |
| Cannulation | 1.35mm |
| Guide Wire | 1.25mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 902.48-Ti | 902.48 | 48mm |
| 902.50-Ti | 902.50 | 50mm |
| 902.52-Ti | 902.52 | 52mm |
| 902.54-Ti | 902.54 | 54mm |
| 902.56-Ti | 902.56 | 56mm |
| 902.58-Ti | 902.58 | 58mm |
| 902.60-Ti | 902.60 | 60mm |
| 902.62-Ti | 902.62 | 62mm |
| 902.64-Ti | 902.64 | 64mm |
| 902.66-Ti | 902.66 | 66mm |
| 902.68-Ti | 902.68 | 68mm |
| 902.70-Ti | 902.70 | 70mm |
| 902.72-Ti | 902.72 | 72mm |
| 902.74-Ti | 902.74 | 74mm |
25. Locking Bolts Dia - 3.4mm
Pernos de bloqueo de diámetro - 3,4 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.4mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 2.7mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 903.20-Ti | 903.20 | 20mm |
| 903.22-Ti | 903.22 | 22mm |
| 903.24-Ti | 903.24 | 24mm |
| 903.26-Ti | 903.26 | 26mm |
| 903.20-Ti | 903.20 | 20mm |
| 903.28-Ti | 903.28 | 28mm |
| 903.30-Ti | 903.30 | 30mm |
| 903.32-Ti | 903.32 | 32mm |
| 903.34-Ti | 903.34 | 34mm |
| 903.36-Ti | 903.36 | 36mm |
| 903.38-Ti | 903.38 | 38mm |
| 903.40-Ti | 902.40 | 40mm |
| 903.42-Ti | 903.42 | 42mm |
| 903.44-Ti | 903.44 | 44mm |
| 903.46-Ti | 903.46 | 46mm |
| 903.48-Ti | 903.48 | 48mm |
| 903.50-Ti | 903.50 | 50mm |
| 903.52-Ti | 903.52 | 52mm |
| 903.54-Ti | 903.54 | 54mm |
| 903.56-Ti | 903.56 | 56mm |
| 903.58-Ti | 903.58 | 58mm |
| 903.60-Ti | 903.60 | 60mm |
26. Locking Bolts Dia - 3.9mm
Pernos de bloqueo de diámetro - 3,9 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.9mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 3.2mm |
| Core Diameter | 3.3mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 904.20-Ti | 904.20 | 20mm |
| 904.22-Ti | 904.22 | 22mm |
| 904.24-Ti | 904.24 | 24mm |
| 904.26-Ti | 904.26 | 26mm |
| 904.20-Ti | 904.20 | 20mm |
| 904.28-Ti | 904.28 | 28mm |
| 904.30-Ti | 904.30 | 30mm |
| 904.32-Ti | 904.32 | 32mm |
| 904.34-Ti | 904.34 | 34mm |
| 904.36-Ti | 904.36 | 36mm |
| 904.38-Ti | 904.38 | 38mm |
| 904.40-Ti | 904.40 | 40mm |
| 904.42-Ti | 904.42 | 42mm |
| 904.44-Ti | 904.44 | 44mm |
| 904.46-Ti | 904.46 | 46mm |
| 904.48-Ti | 904.48 | 48mm |
| 904.50-Ti | 904.50 | 50mm |
| 904.52-Ti | 904.52 | 52mm |
| 904.54-Ti | 904.54 | 54mm |
| 904.56-Ti | 904.56 | 56mm |
| 904.58-Ti | 904.58 | 58mm |
| 904.60-Ti | 904.60 | 60mm |
27. Locking Bolts Dia - 4.9mm
Pernos de bloqueo de diámetro - 4,9 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.9mm |
| Fully Threaded | |
| Drill Bit For Threaded Hole | 4.0mm |
| Core Diameter | 4.3mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 410.50-Ti | 410.50 | 50mm |
| 410.52-Ti | 410.52 | 52mm |
| 410.54-Ti | 410.54 | 54mm |
| 410.56-Ti | 410.56 | 56mm |
| 410.58-Ti | 410.58 | 58mm |
| 410.60-Ti | 410.60 | 60mm |
| 410.65-Ti | 410.65 | 65mm |
| 410.70-Ti | 410.70 | 70mm |
| 410.75-Ti | 410.75 | 75mm |
| 410.80-Ti | 410.80 | 80mm |
| 410.85-Ti | 410.85 | 85mm |
| 410.90-Ti | 410.90 | 90mm |
| 410.95-Ti | 410.95 | 95mm |
| 410.100-Ti | 410.100 | 100mm |
| 410.105-Ti | 410.105 | 105mm |
| 410.110-Ti | 410.110 | 110mm |
| 415.115-Ti | 415.115 | 115mm |
| 420.120-Ti | 420.120 | 120mm |

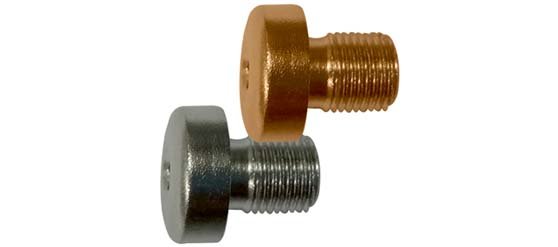

28. Plug Screw for Interlocking I.M.L. Nails
Tornillo de tapón para enclavamiento I.M.L. Clavos
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 905.08-Ti | 905.08 | 08mm |
| 905.09-Ti | 905.09 | 09mm |
| 905.10-Ti | 905.10 | 10mm |
| 905.11-Ti | 905.11 | 11mm |
| 905.12-Ti | 905.12 | 12mm |
| 905.13-Ti | 905.13 | 13mm |
End Cap For Unreamed Humeral Nails
Tapa de extremo para clavos humerales sin fresar
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 906.01-Ti | 906.01 | 0mm |
| 906.02-Ti | 906.02 | 05mm |
| 906.03-Ti | 906.03 | 10mm |
| 906.04-Ti | 906.04 | 15mm |
29. Small Cannulated Screw Full Thread Dia - 4.5mm
Tornillo canulado Diámetro de rosca completa: 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Gliding Hole | 4.5mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 6.5mm |
| Cannulation | 1.75mm |
| Guide Wire | 1.6mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 681.20-Ti | 681.20 | 20mm |
| 681.22-Ti | 681.22 | 22mm |
| 681.24-Ti | 681.24 | 24mm |
| 681.26-Ti | 681.26 | 26mm |
| 681.28-Ti | 681.28 | 28mm |
| 681.30-Ti | 681.30 | 30mm |
| 681.32-Ti | 681.32 | 32mm |
| 681.34-Ti | 681.34 | 34mm |
| 681.36-Ti | 681.36 | 36mm |
| 681.38-Ti | 681.38 | 38mm |
| 681.40-Ti | 681.40 | 40mm |
| 681.42-Ti | 681.42 | 42mm |
| 681.44-Ti | 681.44 | 44mm |
| 681.46-Ti | 681.46 | 46mm |
| 681.48-Ti | 681.48 | 48mm |
| 681.50-Ti | 681.50 | 50mm |
| 681.52-Ti | 681.52 | 52mm |
| 681.54-Ti | 681.54 | 54mm |
| 681.56-Ti | 681.56 | 56mm |
| 681.58-Ti | 681.58 | 58mm |
| 681.60-Ti | 681.60 | 60mm |
| 681.62-Ti | 681.62 | 62mm |
| 681.64-Ti | 681.64 | 64mm |
| 681.66-Ti | 681.66 | 66mm |
| 681.68-Ti | 681.68 | 68mm |
| 681.70-Ti | 681.70 | 70mm |
| 681.72-Ti | 681.72 | 72mm |
| 681.74-Ti | 681.74 | 74mm |
30. Small Cannulated Screw Short Thread Dia - 4.5mm
Tornillo canulado Diámetro de rosca corta - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Shaft Diameter | 3.1mm |
| Core Diameter | 2.7mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 6.5mm |
| Cannulation | 1.75mm |
| Guide Wire | 1.6mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 682.20-Ti | 682.20 | 20mm |
| 682.22-Ti | 682.22 | 22mm |
| 682.24-Ti | 682.24 | 24mm |
| 682.26-Ti | 682.26 | 26mm |
| 682.28-Ti | 682.28 | 28mm |
| 682.30-Ti | 682.30 | 30mm |
| 682.32-Ti | 682.32 | 32mm |
| 682.34-Ti | 682.34 | 34mm |
| 682.36-Ti | 682.36 | 36mm |
| 682.38-Ti | 682.38 | 38mm |
| 682.40-Ti | 682.40 | 40mm |
| 682.42-Ti | 682.42 | 42mm |
| 682.44-Ti | 682.44 | 44mm |
| 682.46-Ti | 682.46 | 46mm |
| 682.48-Ti | 682.48 | 48mm |
| 682.50-Ti | 682.50 | 50mm |
| 682.52-Ti | 682.52 | 52mm |
| 682.54-Ti | 682.54 | 54mm |
| 682.56-Ti | 682.56 | 56mm |
| 682.58-Ti | 682.58 | 58mm |
| 682.60-Ti | 682.60 | 60mm |
| 682.62-Ti | 682.62 | 62mm |
| 682.64-Ti | 682.64 | 64mm |
| 682.66-Ti | 682.66 | 66mm |
| 682.68-Ti | 682.68 | 68mm |
| 682.70-Ti | 682.70 | 70mm |
| 682.72-Ti | 682.72 | 72mm |
| 682.74-Ti | 682.74 | 74mm |
31. Shaft Screws For LC-DCP Dia - 3.5mm
Tornillos de eje para LC-DCP Dia - 3,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 3.5mm |
| Drill Bit For Threaded Hole | 2.5mm |
| Drill Bit For Gliding Hole | 3.5mm |
| Core Diameter | 2.4mm |
| Hexagonal Socket | 2.5mm |
| Head Diameter | 6.0mm |
| Shaft Diameter | 3.5mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 685.20-Ti | 685.20 | 20mm |
| 685.22-Ti | 685.22 | 22mm |
| 685.24-Ti | 685.24 | 24mm |
| 685.26-Ti | 685.26 | 26mm |
| 685.28-Ti | 685.28 | 28mm |
| 685.30-Ti | 685.30 | 30mm |
| 685.32-Ti | 685.32 | 32mm |
| 685.34-Ti | 685.34 | 34mm |
| 685.36-Ti | 685.36 | 36mm |
| 685.38-Ti | 685.38 | 38mm |
| 685.40-Ti | 685.40 | 40mm |
| 685.45-Ti | 685.45 | 45mm |
| 685.50-Ti | 685.50 | 50mm |
| 685.55-Ti | 685.55 | 55mm |
| 685.60-Ti | 685.60 | 60mm |
| 685.64-Ti | 685.64 | 64mm |
| 685.68-Ti | 685.68 | 68mm |
| 685.72-Ti | 685.72 | 72mm |
32. Shaft Screws For LC-DCP Dia - 4.5mm
Tornillos de eje para LC-DCP Dia - 4,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 4.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Gliding Hole | 4.5mm |
| Shaft Diameter | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Thread Length | 13mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 686.22-Ti | 686.22 | 22mm |
| 686.24-Ti | 686.24 | 24mm |
| 686.26-Ti | 686.26 | 26mm |
| 686.28-Ti | 686.28 | 28mm |
| 686.30-Ti | 686.30 | 30mm |
| 686.32-Ti | 686.32 | 32mm |
| 686.34-Ti | 686.34 | 34mm |
| 686.36-Ti | 686.36 | 36mm |
| 686.38-Ti | 686.38 | 38mm |
| 686.40-Ti | 686.40 | 40mm |
| 686.45-Ti | 686.45 | 45mm |
| 686.50-Ti | 686.50 | 50mm |
| 686.52-Ti | 686.52 | 52mm |
| 686.54-Ti | 686.54 | 54mm |
| 686.56-Ti | 686.56 | 56mm |
| 686.58-Ti | 686.58 | 58mm |
| 686.60-Ti | 686.60 | 60mm |
| 686.64-Ti | 686.64 | 64mm |
| 686.68-Ti | 686.68 | 68mm |
| 686.72-Ti | 686.72 | 72mm |
| 686.76-Ti | 686.76 | 76mm |
| 686.80-Ti | 686.80 | 80mm |
| 686.85-Ti | 686.85 | 85mm |
| 686.90-Ti | 686.90 | 90mm |
| 686.95-Ti | 686.95 | 95mm |
| 686.100-Ti | 686.100 | 100mm |

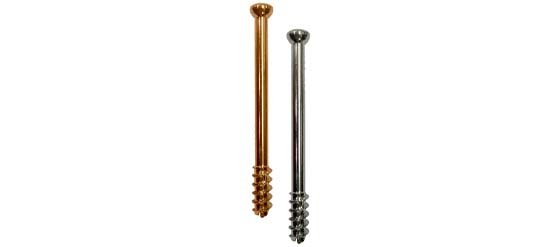

33. Cancellous Traction Screws 32mm Thread Dia - 6.5mm
Tornillos de tracción para esponjosa de 32 mm de diámetro de rosca - 6,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 6.5mm |
| Drill Bit For Threaded Hole | 3.2mm |
| Drill Bit For Shaft | 4.5mm |
| Shaft Diameter | 4.5mm |
| Core Diameter | 3.0mm |
| Hexagonal Socket | 3.5mm |
| Head Diameter | 8.0mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 907.60-Ti | 907.60 | 60mm |
| 907.65-Ti | 907.65 | 65mm |
| 907.70-Ti | 907.70 | 70mm |
| 907.75-Ti | 907.75 | 75mm |
| 907.80-Ti | 907.80 | 80mm |
| 907.85-Ti | 907.85 | 85mm |
| 907.90-Ti | 907.90 | 90mm |
| 907.95-Ti | 907.95 | 95mm |
| 907.100-Ti | 907.100 | 100mm |
| 907.105-Ti | 907.105 | 105mm |
| 907.110-Ti | 907.110 | 110mm |
| 907.115-Ti | 907.115 | 115mm |
| 907.120-Ti | 907.120 | 120mm |
| 907.125-Ti | 907.125 | 125mm |
| 907.130-Ti | 907.130 | 130mm |
| 907.135-Ti | 907.135 | 135mm |
34. Steffee Screw Dia - 4.5mm
Diámetro del tornillo Steffee - 4,5 mm
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 423.24-Ti | 423.24 | 24mm |
| 423.26-Ti | 423.26 | 26mm |
| 423.28-Ti | 423.28 | 28mm |
| 423.30-Ti | 423.30 | 30mm |
| 423.32-Ti | 423.32 | 32mm |
| 423.34-Ti | 423.34 | 34mm |
| 423.36-Ti | 423.36 | 36mm |
| 423.38-Ti | 423.38 | 38mm |
| 423.40-Ti | 423.40 | 40mm |
| 423.42-Ti | 423.42 | 42mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 423.44-Ti | 423.44 | 44mm |
| 423.46-Ti | 423.46 | 46mm |
| 423.48-Ti | 423.48 | 48mm |
| 423.50-Ti | 423.50 | 50mm |
| 423.52-Ti | 423.52 | 52mm |
| 423.54-Ti | 423.54 | 54mm |
| 423.56-Ti | 423.56 | 56mm |
| 423.58-Ti | 423.58 | 58mm |
| 423.60-Ti | 423.60 | 60mm |
35. Steffee Screw Dia - 5.0mm
Diámetro del tornillo Steffee - 5,0 mm
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 424.24-Ti | 424.24 | 24mm |
| 424.26-Ti | 424.26 | 26mm |
| 424.28-Ti | 424.28 | 28mm |
| 424.30-Ti | 424.30 | 30mm |
| 424.32-Ti | 424.32 | 32mm |
| 424.34-Ti | 424.34 | 34mm |
| 424.36-Ti | 424.36 | 36mm |
| 424.38-Ti | 424.38 | 38mm |
| 424.40-Ti | 424.40 | 40mm |
| 424.42-Ti | 424.42 | 42mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 424.44-Ti | 424.44 | 44mm |
| 424.46-Ti | 424.46 | 46mm |
| 424.48-Ti | 424.48 | 48mm |
| 424.50-Ti | 424.50 | 50mm |
| 424.52-Ti | 424.52 | 52mm |
| 424.54-Ti | 424.54 | 54mm |
| 424.56-Ti | 424.56 | 56mm |
| 424.58-Ti | 424.58 | 58mm |
| 424.60-Ti | 424.60 | 60mm |

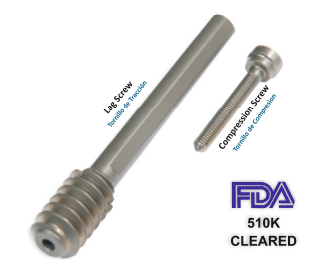

36. Hip Screw with Compression Screw Dia - 12.5mm
Tornillo de cadera con diámetro de tornillo de compresión - 12,5 mm
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Thread Diameter | 12.5mm |
| Thread Length | 22.0mm |
| Shaft Diameter | 8.0mm |
DHS/DCS Compression Screw
| Technical Specification Especificación técnica |
Size Tamaño |
|---|---|
| Ref. No. | 644A |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Size Tamaño |
|---|---|---|
| 644.050-Ti | 644.050 | 50mm |
| 644.055-Ti | 644.055 | 55mm |
| 644.060-Ti | 644.060 | 60mm |
| 644.065-Ti | 644.065 | 65mm |
| 644.070-Ti | 644.070 | 70mm |
| 644.075-Ti | 644.075 | 75mm |
| 644.080-Ti | 644.080 | 80mm |
| 644.085-Ti | 644.085 | 85mm |
| 644.090-Ti | 644.090 | 90mm |
| 644.095-Ti | 644.095 | 95mm |
| 644.100-Ti | 644.100 | 100mm |
| 644.105-Ti | 644.105 | 105mm |
| 644.110-Ti | 644.110 | 110mm |
| 644.115-Ti | 644.115 | 115mm |
| 644.120-Ti | 644.120 | 120mm |
37. Locking Head Screw, Dia - 2.4mm - Self Tapping
Tornillo de cabeza de bloqueo, diámetro - 2.4 mm - autorroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP570006 | FF-006 | 6mm |
| LCP570008 | FF-008 | 8mm |
| LCP570010 | FF-010 | 10mm |
| LCP570012 | FF-012 | 12mm |
| LCP570014 | FF-014 | 14mm |
| LCP570016 | FF-016 | 16mm |
| LCP570018 | FF-018 | 18mm |
| LCP570020 | FF-020 | 20mm |
| LCP570022 | FF-022 | 22mm |
| LCP570024 | FF-024 | 24mm |
| LCP570026 | FF-026 | 26mm |
| LCP570028 | FF-028 | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP570030 | FF-030 | 30mm |
| LCP570032 | FF-032 | 32mm |
| LCP570034 | FF-034 | 34mm |
| LCP570036 | FF-036 | 36mm |
| LCP570038 | FF-038 | 38mm |
| LCP570040 | FF-040 | 40mm |
| LCP570042 | FF-042 | 42mm |
| LCP570044 | FF-044 | 44mm |
| LCP570046 | FF-046 | 46mm |
| LCP570048 | FF-048 | 48mm |
| LCP570050 | FF-050 | 50mm |
38. Locking Head Screw, Dia - 2.7mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 2.7 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP580006 | DD-006 | 6mm |
| LCP580008 | DD-008 | 8mm |
| LCP580010 | DD-010 | 10mm |
| LCP580012 | DD-012 | 12mm |
| LCP580014 | DD-014 | 14mm |
| LCP580016 | DD-016 | 16mm |
| LCP580018 | DD-018 | 18mm |
| LCP580020 | DD-020 | 20mm |
| LCP580022 | DD-022 | 22mm |
| LCP580024 | DD-024 | 24mm |
| LCP580026 | DD-026 | 26mm |
| LCP580028 | DD-028 | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP580030 | DD-030 | 30mm |
| LCP580032 | DD-032 | 32mm |
| LCP580034 | DD-034 | 34mm |
| LCP580036 | DD-036 | 36mm |
| LCP580038 | DD-038 | 38mm |
| LCP580040 | DD-040 | 40mm |
| LCP580042 | DD-042 | 42mm |
| LCP580044 | DD-044 | 44mm |
| LCP580046 | DD-046 | 46mm |
| LCP580048 | DD-048 | 48mm |
| LCP580050 | DD-050 | 50mm |

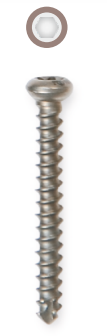

39. Cortical Screw, Dia - 3.5mm - Self Tapping
Tornillo Cortical, Dia - 3.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 604.14ST-Ti | 604.14ST | 14mm |
| 604.16ST-Ti | 604.16ST | 16mm |
| 604.18ST-Ti | 604.18ST | 18mm |
| 604.20ST-Ti | 604.20ST | 20mm |
| 604.22ST-Ti | 604.22ST | 22mm |
| 604.24ST-Ti | 604.24ST | 24mm |
| 604.26ST-Ti | 604.26ST | 26mm |
| 604.28ST-Ti | 604.28ST | 28mm |
| 604.30ST-Ti | 604.30ST | 30mm |
| 604.32ST-Ti | 604.32ST | 32mm |
| 604.34ST-Ti | 604.34ST | 34mm |
| 604.36ST-Ti | 604.36ST | 36mm |
| 604.38ST-Ti | 604.38ST | 38mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 604.40ST-Ti | 604.40ST | 40mm |
| 604.45ST-Ti | 604.45ST | 45mm |
| 604.50ST-Ti | 604.50ST | 50mm |
| 604.55ST-Ti | 604.55ST | 55mm |
| 604.60ST-Ti | 604.60ST | 60mm |
| 604.65ST-Ti | 604.65ST | 65mm |
| 604.70ST-Ti | 604.70ST | 70mm |
| 604.75ST-Ti | 604.75ST | 75mm |
| 604.80ST-Ti | 604.80ST | 80mm |
40. Cortical Screw, Dia - 4.5mm - Self Tapping
Tornillo Cortical, Dia - 4.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 605.22ST-Ti | 605.225T | 22mm |
| 605.24ST-Ti | 605.24ST | 24mm |
| 605.26ST-Ti | 605.26ST | 26mm |
| 605.28ST-Ti | 605.285T | 28mm |
| 605.30ST-Ti | 605.30ST | 30mm |
| 605.32ST-Ti | 605.325T | 32mm |
| 605.34ST-Ti | 605.34ST | 34mm |
| 605.36ST-Ti | 605.36ST | 36mm |
| 605.38ST-Ti | 605.38ST | 38mm |
| 605.40ST-Ti | 605.405T | 40mm |
| 605.42ST-Ti | 605.42ST | 42mm |
| 605.44ST-Ti | 605.44ST | 44mm |
| 605.46ST-Ti | 605.46ST | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 605.48ST-Ti | 605.48ST | 48mm |
| 605.50ST-Ti | 605.50ST | 50mm |
| 605.52ST-Ti | 605.52ST | 52mm |
| 605.54ST-Ti | 605.54ST | 54mm |
| 605.56ST-Ti | 605.56ST | 56mm |
| 605.58ST-Ti | 605.58ST | 58mm |
| 605.60ST-Ti | 605.60ST | 60mm |
| 605.62ST-Ti | 605.62ST | 62mm |
| 605.64ST-Ti | 605.645T | 64mm |
| 605.66ST-Ti | 605.66ST | 66mm |
| 605.68ST-Ti | 605.68ST | 68mm |
| 605.70ST-Ti | 605.70ST | 70mm |
41. Locking Head Screw, Dia - 3.5mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 3.5 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP451010 | 00-010 | 10mm |
| LCP451012 | 00-012 | 12mm |
| LCP451014 | 00-014 | 14mm |
| LCP451016 | 00-016 | 16mm |
| LCP451018 | 00-018 | 18mm |
| LCP451020 | 00-020 | 20mm |
| LCP451022 | 00-022 | 22mm |
| LCP451024 | 00-024 | 24mm |
| LCP451026 | 00-026 | 26mm |
| LCP451028 | 00-028 | 28mm |
| LCP451030 | 00-030 | 30mm |
| LCP451032 | 00-032 | 32mm |
| LCP451034 | 00-034 | 34mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP451034 | 00-034 | 34mm |
| LCP451036 | 00-036 | 36mm |
| LCP451038 | 00-038 | 38mm |
| LCP451040 | 00-040 | 40mm |
| LCP451045 | 00-045 | 45mm |
| LCP451050 | 00-050 | 50mm |
| LCP451055 | 00-055 | 55mm |
| LCP451060 | 00-060 | 60mm |
| LCP451065 | 00-065 | 65mm |
| LCP451070 | 00-070 | 70mm |
| LCP451075 | 00-075 | 75mm |
| LCP451080 | 00-080 | 80mm |
42. Locking Head Screw, Dia - 5.0mm - Self Tapping
Tornillo con Cabeza de Bloqueo, Dia - 5.0 mm - Autoroscante
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP552014 | PP-014 | 14mm |
| LCP552016 | PP-016 | 16mm |
| LCP552018 | PP-018 | 18mm |
| LCP552020 | PP-020 | 20mm |
| LCP552022 | PP-022 | 22mm |
| LCP552024 | PP-024 | 24mm |
| LCP552026 | PP-026 | 26mm |
| LCP552028 | PP-028 | 28mm |
| LCP552030 | PP-030 | 30mm |
| LCP552032 | PP-032 | 32mm |
| LCP552034 | PP-034 | 34mm |
| LCP552036 | PP-036 | 36mm |
| LCP552038 | PP-038 | 38mm |
| LCP552040 | PP-040 | 40mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP552042 | PP-042 | 42mm |
| LCP552044 | PP-044 | 44mm |
| LCP552046 | PP-046 | 46mm |
| LCP552048 | PP-048 | 48mm |
| LCP552050 | PP-050 | 50mm |
| LCP552055 | PP-055 | 55mm |
| LCP552060 | PP-060 | 60mm |
| LCP552065 | PP-065 | 65mm |
| LCP552070 | PP-070 | 70mm |
| LCP552075 | PP-075 | 75mm |
| LCP552080 | PP-080 | 80mm |
| LCP552085 | PP-085 | 85mm |
| LCP552090 | PP-090 | 90mm |
43. Locking Head Cancellous Screw Dia - 5.0mm "16mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP501630 | 5016-30 | 30mm |
| LCP501635 | 5016-35 | 35mm |
| LCP501640 | 5016-40 | 40mm |
| LCP501645 | 5016-45 | 45mm |
| LCP501650 | 5016-50 | 50mm |
| LCP501655 | 5016-55 | 55mm |
| LCP501660 | 5016-60 | 60mm |
| LCP501665 | 5016-65 | 65mm |
| LCP501670 | 5016-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP501675 | 5016-75 | 75mm |
| LCP501680 | 5016-80 | 80mm |
| LCP501685 | 5016-85 | 85mm |
| LCP501690 | 5016-90 | 90mm |
| LCP501695 | 5016-95 | 95mm |
| LCP5016100 | 5016-100 | 100mm |
| LCP5016105 | 5016-105 | 105mm |
| LCP5016110 | 5016-110 | 110mm |
44. Locking Head Cancellous Screw Dia - 5.0mm "32mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP503240 | 5032-40 | 40mm |
| LCP503245 | 5032-45 | 45mm |
| LCP503250 | 5032-50 | 50mm |
| LCP503255 | 5032-55 | 55mm |
| LCP503260 | 5032-60 | 60mm |
| LCP503265 | 5032-65 | 65mm |
| LCP503270 | 5032-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP503275 | 5032-75 | 75mm |
| LCP503280 | 5032-80 | 80mm |
| LCP503285 | 5032-85 | 85mm |
| LCP503290 | 5032-90 | 90mm |
| LCP503295 | 5032-95 | 95mm |
| LCP5032100 | 5032-100 | 100mm |
| LCP5032105 | 5032-105 | 105mm |
| LCP5032110 | 5032-110 | 110mm |
45. Locking Head Cancellous Screw Dia - 5.0mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP500025 | 5000-25 | 25mm |
| LCP500030 | 5000-30 | 30mm |
| LCP500035 | 5000-35 | 35mm |
| LCP500040 | 5000-40 | 40mm |
| LCP500045 | 5000-45 | 45mm |
| LCP500050 | 5000-50 | 50mm |
| LCP500055 | 5000-55 | 55mm |
| LCP500060 | 5000-60 | 60mm |
| LCP500065 | 5000-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP500070 | 5000-70 | 70mm |
| LCP500075 | 5000-75 | 75mm |
| LCP500080 | 5000-80 | 80mm |
| LCP500085 | 5000-85 | 85mm |
| LCP500090 | 5000-90 | 90mm |
| LCP500095 | 5000-95 | 95mm |
| LCP5000100 | 5000-100 | 100mm |
| LCP5000105 | 5000-105 | 105mm |
| LCP5000110 | 5000-110 | 110mm |
46. Locking Head Screw Cancellous, Dia - 6.5mm "16mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP651630 | 6516-30 | 30mm |
| LCP651635 | 6516-35 | 35mm |
| LCP651640 | 6516-40 | 40mm |
| LCP651645 | 6516-45 | 45mm |
| LCP651650 | 6516-50 | 50mm |
| LCP651655 | 6516-55 | 55mm |
| LCP651660 | 6516-60 | 60mm |
| LCP651665 | 6516-65 | 65mm |
| LCP651670 | 6516-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP651675 | 6516-75 | 75mm |
| LCP651680 | 6516-80 | 80mm |
| LCP651685 | 6516-85 | 85mm |
| LCP651690 | 6516-90 | 90mm |
| LCP651695 | 6516-95 | 95mm |
| LCP6516100 | 6516-100 | 100mm |
| LCP6516105 | 6516-105 | 105mm |
| LCP6516110 | 6516-110 | 110mm |
47. Locking Head Cancellous Screw Dia - 6.5mm "32mm Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP653240 | 6532-40 | 40mm |
| LCP653245 | 6532-45 | 45mm |
| LCP653250 | 6532-50 | 50mm |
| LCP653255 | 6532-55 | 55mm |
| LCP653260 | 6532-60 | 60mm |
| LCP653265 | 6532-65 | 65mm |
| LCP653270 | 6532-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP653275 | 6532-75 | 75mm |
| LCP653280 | 6532-80 | 80mm |
| LCP653285 | 6532-85 | 85mm |
| LCP653290 | 6532-90 | 90mm |
| LCP653295 | 6532-95 | 95mm |
| LCP6532100 | 6532-100 | 100mm |
| LCP6532105 | 6532-105 | 105mm |
| LCP6532110 | 6532-110 | 110mm |
48. Locking Head Cancellous Screw Dia - 6.5mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 6.5 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP650025 | 6500-25 | 25mm |
| LCP650030 | 6500-30 | 30mm |
| LCP650035 | 6500-35 | 35mm |
| LCP650040 | 6500-40 | 40mm |
| LCP650045 | 6500-45 | 45mm |
| LCP650050 | 6500-50 | 50mm |
| LCP650055 | 6500-55 | 55mm |
| LCP650060 | 6500-60 | 60mm |
| LCP650065 | 6500-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP650070 | 6500-70 | 70mm |
| LCP650075 | 6500-75 | 75mm |
| LCP650080 | 6500-80 | 80mm |
| LCP650085 | 6500-85 | 85mm |
| LCP650090 | 6500-90 | 90mm |
| LCP650095 | 6500-95 | 95mm |
| LCP6500100 | 6500-100 | 100mm |
| LCP6500105 | 6500-105 | 105mm |
| LCP6500110 | 6500-110 | 110mm |
49. Locking Head Cancellous Screw Dia - 3.5mm "Full Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 3.5 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-35F-014 | 35F-014 | 14mm |
| LCP-35F-016 | 35F-016 | 16mm |
| LCP-35F-018 | 35F-018 | 18mm |
| LCP-35F-020 | 35F-020 | 20mm |
| LCP-35F-022 | 35F-022 | 22mm |
| LCP-35F-024 | 35F-024 | 24mm |
| LCP-35F-026 | 35F-026 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-35F-028 | 35F-028 | 28mm |
| LCP-35F-030 | 35F-030 | 30mm |
| LCP-35F-035 | 35F-035 | 35mm |
| LCP-35F-040 | 35F-040 | 40mm |
| LCP-35F-045 | 35F-045 | 45mm |
| LCP-35F-050 | 35F-050 | 50mm |
| LCP-35F-055 | 35F-055 | 55mm |
| LCP-35F-060 | 35F-060 | 60mm |
50. Locking Head Cancellous Screw Dia - 3.5mm "Short Thread"
Tornillo con Cabeza de Bloqueo Esponjoso, Dia - 3.5 mm "Rosca Corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-355-014 | 355-014 | 14mm |
| LCP-355-016 | 355-016 | 16mm |
| LCP-355-018 | 355-018 | 18mm |
| LCP-355-020 | 355-020 | 20mm |
| LCP-355-022 | 355-022 | 22mm |
| LCP-355-024 | 355-024 | 24mm |
| LCP-355-026 | 355-026 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP-355-028 | 355-028 | 28mm |
| LCP-355-030 | 355-030 | 30mm |
| LCP-355-035 | 355-035 | 35mm |
| LCP-355-040 | 355-040 | 40mm |
| LCP-355-045 | 355-045 | 45mm |
| LCP-355-050 | 355-050 | 50mm |
| LCP-355-055 | 355-055 | 55mm |
| LCP-355-060 | 355-060 | 60mm |
51. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "16mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 16mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP511630 | 5116-30 | 30mm |
| LCP511635 | 5116-35 | 35mm |
| LCP511640 | 5116-40 | 40mm |
| LCP511645 | 5116-45 | 45mm |
| LCP511650 | 5116-50 | 50mm |
| LCP511655 | 5116-55 | 55mm |
| LCP511660 | 5116-60 | 60mm |
| LCP511665 | 5116-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP511670 | 5116-70 | 70mm |
| LCP511675 | 5116-75 | 75mm |
| LCP511680 | 5116-80 | 80mm |
| LCP511685 | 5116-85 | 85mm |
| LCP511690 | 5116-90 | 90mm |
| LCP511695 | 5116-95 | 95mm |
| LCP5116100 | 5116-100 | 100mm |
| LCP5116105 | 5116-105 | 105mm |
| LCP5116110 | 5116-110 | 110mm |
52. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "32mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca 32mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP513240 | 5132-40 | 40mm |
| LCP513245 | 5132-45 | 45mm |
| LCP513250 | 5132-50 | 50mm |
| LCP513255 | 5132-55 | 55mm |
| LCP513260 | 5132-60 | 60mm |
| LCP513265 | 5132-65 | 65mm |
| LCP513270 | 5132-70 | 70mm |
| LCP513275 | 5132-75 | 75mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP513280 | 5132-80 | 80mm |
| LCP513285 | 5132-85 | 85mm |
| LCP513290 | 5132-90 | 90mm |
| LCP513295 | 5132-95 | 95mm |
| LCP5132100 | 5132-100 | 100mm |
| LCP5132105 | 5132-105 | 105mm |
| LCP5132110 | 5132-110 | 110mm |
53. Locking Head Cannulated Cancellous Screw Dia - 5.0mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 5.0 mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP510025 | 5100-25 | 25mm |
| LCP510030 | 5100-30 | 30mm |
| LCP510035 | 5100-35 | 35mm |
| LCP510040 | 5100-40 | 40mm |
| LCP510045 | 5100-45 | 45mm |
| LCP510050 | 5100-50 | 50mm |
| LCP510055 | 5100-55 | 55mm |
| LCP510060 | 5100-60 | 60mm |
| LCP510065 | 5100-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP510070 | 5100-70 | 70mm |
| LCP510075 | 5100-75 | 75mm |
| LCP510080 | 5100-80 | 80mm |
| LCP510085 | 5100-85 | 85mm |
| LCP510090 | 5100-90 | 90mm |
| LCP510095 | 5100-95 | 95mm |
| LCP5100100 | 5100-100 | 100mm |
| LCP5100105 | 5100-105 | 105mm |
| LCP5100110 | 5100-110 | 110mm |
54. Locking Head Cannulated Cancellous Screw 3.5 mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 3.5mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35F-014 | LC683-14 | 14mm |
| LCCS-35F-016 | LC683-16 | 16mm |
| LCCS-35F-018 | LC683-18 | 18mm |
| LCCS-35F-020 | LC683-20 | 20mm |
| LCCS-35F-022 | LC683-22 | 22mm |
| LCCS-35F-024 | LC683-24 | 24mm |
| LCCS-35F-026 | LC683-26 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35F-028 | LC683-28 | 28mm |
| LCCS-35F-030 | LC683-30 | 30mm |
| LCCS-35F-035 | LC683-35 | 35mm |
| LCCS-35F-040 | LC683-40 | 40mm |
| LCCS-35F-045 | LC683-45 | 45mm |
| LCCS-35F-050 | LC683-50 | 50mm |
| LCCS-35F-055 | LC683-55 | 55mm |
| LCCS-35F-060 | LC683-60 | 60mm |
55. Locking Head Cannulated Cancellous Screw 3.5 mm "Short Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 3.5mm "Rosca Corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|
|---|---|---|---|
| LCCS-35S-014 | LC684-14 | 14mm | |
| LCCS-35S-016 | LC684-16 | 16mm | |
| LCCS-35S-018 | LC684-18 | 18mm | |
| LCCS-35S-020 | LC684-20 | 20mm | |
| LCCS-35S-022 | LC684-22 | 22mm | |
| LCCS-35S-024 | LC684-24 | 24mm | |
| LCCS-35S-026 | LC684-26 | 26mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCCS-35S-028 | LC684-28 | 28mm |
| LCCS-35S-030 | LC684-30 | 30mm |
| LCCS-35S-022 | LC684-35 | 35mm |
| LCCS-35S-040 | LC684-40 | 40mm |
| LCCS-35S-045 | LC684-45 | 45mm |
| LCCS-35S-050 | LC684-50 | 50mm |
| LCCS-35S-055 | LC684-55 | 55mm |
| LCCS-35S-060 | LC684-60 | 60mm |
56. Small Cannulated Screw, Dia - 3.5 "Short Thread"
Tornillo canulado pequeño, diámetro - 3.5 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 684.10-Ti | 684.10 | 10mm |
| 684.12-Ti | 684.12 | 12mm |
| 684.14-Ti | 684.14 | 14mm |
| 684.16-Ti | 684.16 | 16mm |
| 684.18-Ti | 684.18 | 18mm |
| 684.20-Ti | 684.20 | 20mm |
| 684.22-Ti | 684.22 | 22mm |
| 684.24-Ti | 684.24 | 24mm |
| 684.26-Ti | 684.26 | 26mm |
| 684.28-Ti | 684.28 | 28mm |
| 684.30-Ti | 684.30 | 30mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 684.32-Ti | 684.32 | 32mm |
| 684.34-Ti | 684.34 | 34mm |
| 684.36-Ti | 684.36 | 36mm |
| 684.38-Ti | 684.38 | 38mm |
| 684.40-Ti | 684.40 | 40mm |
| 684.42-Ti | 684.42 | 42mm |
| 684.44-Ti | 684.44 | 44mm |
| 684.46-Ti | 684.46 | 46mm |
| 684.48-Ti | 684.48 | 48mm |
| 684.50-Ti | 684.50 | 50mm |
57. Small Cannulated Screw, Dia - 3.5 "Full Thread"
Tornillo canulado pequeño, diámetro - 3.5 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 683.10-Ti | 683.10 | 10mm |
| 683.12-Ti | 683.12 | 12mm |
| 683.14-Ti | 683.14 | 14mm |
| 683.16-Ti | 683.16 | 16mm |
| 683.18-Ti | 683.18 | 18mm |
| 683.20-Ti | 683.20 | 20mm |
| 683.22-Ti | 683.22 | 22mm |
| 683.24-Ti | 683.24 | 24mm |
| 683.26-Ti | 683.26 | 26mm |
| 683.28-Ti | 683.28 | 28mm |
| 683.30-Ti | 683.30 | 30mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 683.32-Ti | 683.32 | 32mm |
| 683.34-Ti | 683.34 | 34mm |
| 683.36-Ti | 683.36 | 36mm |
| 683.38-Ti | 683.38 | 38mm |
| 683.40-Ti | 683.40 | 40mm |
| 683.42-Ti | 683.42 | 42mm |
| 683.44-Ti | 683.44 | 44mm |
| 683.46-Ti | 683.46 | 46mm |
| 683.48-Ti | 683.48 | 48mm |
| 683.50-Ti | 683.50 | 50mm |
58. Small Cannulated Screw, Dia - 4.0 "Full Thread"
Tornillo canulado pequeño, diámetro - 4.0 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 901.20-Ti | 901.20 | 20mm |
| 901.22-Ti | 901.22 | 22mm |
| 901.24-Ti | 901.24 | 24mm |
| 901.26-Ti | 901.26 | 26mm |
| 901.28-Ti | 901.28 | 28mm |
| 901.30-Ti | 901.30 | 30mm |
| 901.32-Ti | 901.32 | 32mm |
| 901.34-Ti | 901.34 | 34mm |
| 901.36-Ti | 901.36 | 36mm |
| 901.38-Ti | 901.38 | 38mm |
| 901.40-Ti | 901.40 | 40mm |
| 901.42-Ti | 901.42 | 42mm |
| 901.44-Ti | 901.44 | 44mm |
| 901.46-Ti | 901.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 901.48-Ti | 901.48 | 48mm |
| 901.50-Ti | 901.50 | 50mm |
| 901.52-Ti | 901.52 | 52mm |
| 901.54-Ti | 901.54 | 54mm |
| 901.56-Ti | 901.56 | 56mm |
| 901.58-Ti | 901.58 | 58mm |
| 901.60-Ti | 901.60 | 60mm |
| 901.62-Ti | 901.62 | 62mm |
| 901.64-Ti | 901.64 | 64mm |
| 901.66-Ti | 901.66 | 66mm |
| 901.68-Ti | 901.68 | 68mm |
| 901.70-Ti | 901.70 | 70mm |
| 901.72-Ti | 901.72 | 72mm |
| 901.74-Ti | 901.74 | 74mm |
59. Small Cannulated Screw, Dia - 4.0 "Short Thread"
Tornillo canulado pequeño, diámetro - 4.0 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 902.20-Ti | 902.20 | 20mm |
| 902.22-Ti | 902.22 | 22mm |
| 902.24-Ti | 902.24 | 24mm |
| 902.26-Ti | 902.26 | 26mm |
| 902.28-Ti | 902.28 | 28mm |
| 902.30-Ti | 902.30 | 30mm |
| 902.32-Ti | 902.32 | 32mm |
| 902.34-Ti | 902.34 | 34mm |
| 902.36-Ti | 902.36 | 36mm |
| 902.38-Ti | 902.38 | 38mm |
| 902.40-Ti | 902.40 | 40mm |
| 902.42-Ti | 902.42 | 42mm |
| 902.44-Ti | 902.44 | 44mm |
| 902.46-Ti | 902.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 902.48-Ti | 902.48 | 48mm |
| 902.50-Ti | 902.50 | 50mm |
| 902.52-Ti | 902.52 | 52mm |
| 902.54-Ti | 902.54 | 54mm |
| 902.56-Ti | 902.56 | 56mm |
| 902.58-Ti | 902.58 | 58mm |
| 902.60-Ti | 902.60 | 60mm |
| 902.62-Ti | 902.62 | 62mm |
| 902.64-Ti | 902.64 | 64mm |
| 902.66-Ti | 902.66 | 66mm |
| 902.68-Ti | 902.68 | 68mm |
| 902.70-Ti | 902.70 | 70mm |
| 902.72-Ti | 902.72 | 72mm |
| 902.74-Ti | 902.74 | 74mm |
60. Cannulated Screw, Dia - 4.5 "Full Thread"
Tornillo canulado pequeño, diámetro - 4.5 "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 681.20-Ti | 681.20 | 20mm |
| 681.22-Ti | 681.22 | 22mm |
| 681.24-Ti | 681.24 | 24mm |
| 681.26-Ti | 681.26 | 26mm |
| 681.28-Ti | 681.28 | 28mm |
| 681.30-Ti | 681.30 | 30mm |
| 681.32-Ti | 681.32 | 32mm |
| 681.34-Ti | 681.34 | 34mm |
| 681.36-Ti | 681.36 | 36mm |
| 681.38-Ti | 681.38 | 38mm |
| 681.40-Ti | 681.40 | 40mm |
| 681.42-Ti | 681.42 | 42mm |
| 681.44-Ti | 681.44 | 44mm |
| 681.46-Ti | 681.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 681.48-Ti | 681.48 | 48mm |
| 681.50-Ti | 681.50 | 50mm |
| 681.52-Ti | 681.52 | 52mm |
| 681.54-Ti | 681.54 | 54mm |
| 681.56-Ti | 681.56 | 56mm |
| 681.58-Ti | 681.58 | 58mm |
| 681.60-Ti | 681.60 | 60mm |
| 681.62-Ti | 681.62 | 62mm |
| 681.64-Ti | 681.64 | 64mm |
| 681.66-Ti | 681.66 | 66mm |
| 681.68-Ti | 681.68 | 68mm |
| 681.70-Ti | 681.70 | 70mm |
| 681.72-Ti | 681.72 | 72mm |
| 681.74-Ti | 681.74 | 74mm |
61. Cannulated Screw, Dia - 4.5 "Short Thread"
Tornillo canulado, diámetro - 4.5 "rosca corta"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 682.20-Ti | 682.20 | 20mm |
| 682.22-Ti | 682.22 | 22mm |
| 682.24-Ti | 682.24 | 24mm |
| 682.26-Ti | 682.26 | 26mm |
| 682.28-Ti | 682.28 | 28mm |
| 682.30-Ti | 682.30 | 30mm |
| 682.32-Ti | 682.32 | 32mm |
| 682.34-Ti | 682.34 | 34mm |
| 682.36-Ti | 682.36 | 36mm |
| 682.38-Ti | 682.38 | 38mm |
| 682.40-Ti | 682.40 | 40mm |
| 682.42-Ti | 682.42 | 42mm |
| 682.44-Ti | 682.44 | 44mm |
| 682.46-Ti | 682.46 | 46mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 682.48-Ti | 682.48 | 48mm |
| 682.50-Ti | 682.50 | 50mm |
| 682.52-Ti | 682.52 | 52mm |
| 682.54-Ti | 682.54 | 54mm |
| 682.56-Ti | 682.56 | 56mm |
| 682.58-Ti | 682.58 | 58mm |
| 682.60-Ti | 682.60 | 60mm |
| 682.62-Ti | 682.62 | 62mm |
| 682.64-Ti | 682.64 | 64mm |
| 682.66-Ti | 682.66 | 66mm |
| 682.68-Ti | 682.68 | 68mm |
| 682.70-Ti | 682.70 | 70mm |
| 682.72-Ti | 682.72 | 72mm |
| 682.74-Ti | 682.74 | 74mm |
62. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "16mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca 16mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP661630 | 6116-30 | 30mm |
| LCP661635 | 6116-35 | 35mm |
| LCP661640 | 6116-40 | 40mm |
| LCP661645 | 6116-45 | 45mm |
| LCP661650 | 6116-50 | 50mm |
| LCP661655 | 6116-55 | 55mm |
| LCP661660 | 6116-60 | 60mm |
| LCP661665 | 6116-65 | 65mm |
| LCP661670 | 6116-70 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP661675 | 6116-75 | 75mm |
| LCP661680 | 6116-80 | 80mm |
| LCP661685 | 6116-85 | 85mm |
| LCP661690 | 6116-90 | 90mm |
| LCP661695 | 6116-95 | 95mm |
| LCP6616100 | 6116-100 | 100mm |
| LCP6616105 | 6116-105 | 105mm |
| LCP6616110 | 6116-110 | 110mm |
63. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "32mm Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca 32mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP663240 | 6132-40 | 40mm |
| LCP663245 | 6132-45 | 45mm |
| LCP663250 | 6132-50 | 50mm |
| LCP663255 | 6132-55 | 55mm |
| LCP663260 | 6132-60 | 60mm |
| LCP663265 | 6132-65 | 65mm |
| LCP663270 | 6132-70 | 70mm |
| LCP663275 | 6132-75 | 75mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP663280 | 6132-80 | 80mm |
| LCP663285 | 6132-85 | 85mm |
| LCP663290 | 6132-90 | 90mm |
| LCP663295 | 6132-95 | 95mm |
| LCP6632100 | 6132-100 | 100mm |
| LCP6632105 | 6132-105 | 105mm |
| LCP6632110 | 6132-110 | 110mm |
64. Locking Head Cannulated Cancellous Screw Dia - 6.5mm "Full Thread"
Tornillo Canulado con Cabeza de Bloqueo Esponjoso, Dia - 6.5mm "Rosca Completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP660025 | 6100-25 | 25mm |
| LCP660030 | 6100-30 | 30mm |
| LCP660035 | 6100-35 | 35mm |
| LCP660040 | 6100-40 | 40mm |
| LCP660045 | 6100-45 | 45mm |
| LCP660050 | 6100-50 | 50mm |
| LCP660055 | 6100-55 | 55mm |
| LCP660060 | 6100-60 | 60mm |
| LCP660065 | 6100-65 | 65mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| LCP660070 | 6100-70 | 70mm |
| LCP660075 | 6100-75 | 75mm |
| LCP660080 | 6100-80 | 80mm |
| LCP660085 | 6100-85 | 85mm |
| LCP660090 | 6100-90 | 90mm |
| LCP660095 | 6100-95 | 95mm |
| LCP660100 | 6100-100 | 100mm |
| LCP6600105 | 6100-105 | 105mm |
| LCP6600110 | 6100-110 | 110mm |
65. Cannulated Cancellous Screw, Dia - 6.5mm "16mm Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca de 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.6530-TI | 615.6530 | 30mm |
| 615.6535-Ti | 615.6535 | 35mm |
| 615.6540-Ti | 615.6540 | 40mm |
| 615.6545-Ti | 615.6545 | 45mm |
| 615.6550-Ti | 615.6550 | 50mm |
| 615.6555-Ti | 615.6555 | 55mm |
| 615.6560-Ti | 615.6560 | 60mm |
| 615.6565-Ti | 615.6565 | 65mm |
| 615.6570-Ti | 615.6570 | 70mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.6575-Ti | 615.6575 | 75mm |
| 615.6580-Ti | 615.6580 | 80mm |
| 615.6585-Ti | 615.6585 | 85mm |
| 615.6590-Ti | 615.6590 | 90mm |
| 615.6595-Ti | 615.6595 | 95mm |
| 615.65100-Ti | 615.65100 | 100mm |
| 615.65105-Ti | 615.65105 | 105mm |
| 615.65110-TI | 615.65110 | 110mm |
66. Cannulated Cancellous Screw, Dia - 6.5mm "32mm Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca de 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.6540-Ti | 616.6540 | 40mm |
| 616.6545-Ti | 616.6545 | 45mm |
| 616.6550-Ti | 616.6550 | 50mm |
| 616.6555-Ti | 616.6555 | 55mm |
| 616.6560-Ti | 616.6560 | 60mm |
| 616.6565-Ti | 616.6565 | 65mm |
| 616.6570-Ti | 616.6570 | 70mm |
| 616.6575-Ti | 616.6575 | 75mm |
| 616.6580-Ti | 616.6580 | 80mm |
| 616.6585-Ti | 616.6585 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.6590-Ti | 616.6590 | 90mm |
| 616.6595-Ti | 616.6595 | 95mm |
| 616.65100-TI | 616.65100 | 100mm |
| 616.65105-Ti | 616.65105 | 105mm |
| 616.65110-Ti | 616.65110 | 110mm |
| 616.65115-TI | 616.65115 | 115mm |
| 616.65120-Ti | 616.65120 | 120mm |
| 616.65125-TI | 616.65125 | 125mm |
| 616.65130-TI | 616.65130 | 130mm |
67. Cannulated Cancellous Screw, Dia - 6.5mm "Full Thread"
Tornillo esponjoso canulado, diámetro - 6,5 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 617.6540-Ti | 617.6540 | 40mm |
| 617.6545-Ti | 617.6545 | 45mm |
| 617.6550-Ti | 617.6550 | 50mm |
| 617.6555-Ti | 617.6555 | 55mm |
| 617.6560-Ti | 617.6560 | 60mm |
| 617.6565-Ti | 617.6565 | 65mm |
| 617.6570-Ti | 617.6570 | 70mm |
| 617.6575-Ti | 617.6575 | 75mm |
| 617.6580-Ti | 617.6580 | 80mm |
| 617.6585-Ti | 617.6585 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 617.6590-Ti | 617.6590 | 90mm |
| 617.6595-Ti | 617.6595 | 95mm |
| 617.65100-Ti | 617.65100 | 100mm |
| 617.65105-Ti | 617.65105 | 105mm |
| 617.65110-Ti | 617.65110 | 110mm |
| 617.65115-Ti | 617.65115 | 115mm |
| 617.65120-Ti | 617.65120 | 120mm |
| 617.65125-Ti | 617.65125 | 125mm |
| 617.65130-Ti | 617.65130 | 130mm |
68. Large Cannulated Cancellous Screw, Dia - 7.0mm "16mm Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca de 16 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.30-Ti | 615.30 | 30mm |
| 615.35-Ti | 615.35 | 35mm |
| 615.40-Ti | 615.40 | 40mm |
| 615.45-Ti | 615.45 | 45mm |
| 615.50-Ti | 615.50 | 50mm |
| 615.55-Ti | 615.55 | 55mm |
| 615.60-Ti | 615.60 | 60mm |
| 615.65-Ti | 615.65 | 65mm |
| 615.70-Ti | 615.70 | 70mm |
| 615.75-Ti | 615.75 | 75mm |
| 615.80-Ti | 615.80 | 80mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 615.85-Ti | 615.85 | 85mm |
| 615.90-Ti | 615.90 | 90mm |
| 615.95-Ti | 615.95 | 95mm |
| 615.100-Ti | 615.100 | 100mm |
| 615.105-Ti | 615.105 | 105mm |
| 615.110-Ti | 615.110 | 110mm |
| 615.115-Ti | 615.115 | 115mm |
| 615.120-Ti | 615.120 | 120mm |
| 615.125-Ti | 615.125 | 125mm |
| 615.130-Ti | 615.130 | 130mm |
69. Large Cannulated Cancellous Screw, Dia - 7.0mm "32mm Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca de 32 mm"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.40-Ti | 616.40 | 40mm |
| 616.45-Ti | 616.45 | 45mm |
| 616.50-Ti | 616.50 | 50mm |
| 616.55-Ti | 616.55 | 55mm |
| 616.60-Ti | 616.60 | 60mm |
| 616.65-Ti | 616.65 | 65mm |
| 616.70-Ti | 616.70 | 70mm |
| 616.75-Ti | 616.75 | 75mm |
| 616.80-Ti | 616.80 | 80mm |
| 616.85-Ti | 616.85 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.90-Ti | 616.90 | 90mm |
| 616.95-Ti | 616.95 | 95mm |
| 616.100-Ti | 616.100 | 100mm |
| 616.105-Ti | 616.105 | 105mm |
| 616.110-Ti | 616.110 | 110mm |
| 616.115-Ti | 616.115 | 115mm |
| 616.120-Ti | 616.120 | 120mm |
| 616.125-Ti | 616.125 | 125mm |
| 616.130-Ti | 616.130 | 130mm |
70. Large Cannulated Cancellous Screw, Dia - 7.0mm "Full Thread"
Tornillo esponjoso canulado grande, diámetro - 7,0 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.7040-Ti | 616.7040 | 40mm |
| 616.7045-Ti | 616.7045 | 45mm |
| 616.7050-Ti | 616.7050 | 50mm |
| 616.7055-Ti | 616.7055 | 55mm |
| 616.7060-Ti | 616.7060 | 60mm |
| 616.7065-Ti | 616.7065 | 65mm |
| 616.7070-Ti | 616.7070 | 70mm |
| 616.7075-Ti | 616.7075 | 75mm |
| 616.7080-TI | 616.7080 | 80mm |
| 616.7085-Ti | 616.7085 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 616.7090-Ti | 616.7090 | 90mm |
| 616.7095-Ti | 616.7095 | 95mm |
| 616.70100-Ti | 616.70100 | 100mm |
| 616.70105-Ti | 616.70105 | 105mm |
| 616.70110-Ti | 616.70110 | 110mm |
| 616.70115-TI | 616.70115 | 115mm |
| 616.70120-Ti | 616.70120 | 120mm |
| 616.70125-Ti | 616.70125 | 125mm |
| 616.70130-Ti | 616.70130 | 130mm |
71. Large Cannulated Cancellous Screw, Dia - 7.3mm "Full Thread"
Tornillo esponjoso canulado grande, diámetro - 7,3 mm "rosca completa"
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 7300.40-Ti | 7300.40 | 40mm |
| 7300.45-Ti | 7300.45 | 45mm |
| 7300.50-Ti | 7300.50 | 50mm |
| 7300.55-Ti | 7300.55 | 55mm |
| 7300.60-Ti | 7300.60 | 60mm |
| 7300.65-Ti | 7300.65 | 65mm |
| 7300.70-Ti | 7300.70 | 70mm |
| 7300.75-Ti | 7300.75 | 75mm |
| 7300.80-Ti | 7300.80 | 80mm |
| 7300.85-Ti | 7300.85 | 85mm |
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 7300.90-Ti | 7300.90 | 90mm |
| 7300.95-Ti | 7300.95 | 95mm |
| 7300.100-TI | 7300.100 | 100mm |
| 7300.105-Ti | 7300.105 | 105mm |
| 7300.110-Ti | 7300.110 | 110mm |
| 7300.115-Ti | 7300.115 | 115mm |
| 7300.120-Ti | 7300.120 | 120mm |
| 7300.125-Ti | 7300.125 | 125mm |
| 7300.130-Ti | 7300.130 | 130mm |
73. Screw Drivers for Bone Screws
Destornilladores para tornillos de hueso
-
Screwdriver For 4.5/5.0mm screws with 3.5mm Tip
-
Screwdriver For 3.5mm screws with Tip 2.5mm
-
Screwdriver For 2.4/2.7mm screws with 2.0mm Tip
-
Torque Screwdriver for 4.5/5.0mm Screws 4.5NM
-
Torque Screwdriver for 3mm Screws 1.5NM
-
Screw Holding Sleeve For Screwdrivers
Available in Hexagonal/Star Head
-
Screwdriver for 4.5/5.0mm screws with 3.5mm tip Silicon Handle 5.0mm
-
Screwdriver for 3.5mm screws with tip 2.5mm Silicon Handle 3.5
-
Screwdriver for 2.4/2.7mm screws with 2.0mm tip Silicon Handle 2.7mm
-
Torque-limiting Handle for 2.4/2.7mm 0.8NM
-
Shaft for Torque-limiting Handle for 2.4/2.7mm
73. DHS/DCS Lag Screw
Tornillo de Tracción DHS/DCS
| Ref. No. Ti | Ref. No. SS | Length |
|---|---|---|
| LCP600060 | ZZ-060 | 60mm |
| LCP600065 | ZZ-065 | 65mm |
| LCP600070 | ZZ-070 | 70mm |
| LCP600075 | ZZ-075 | 75mm |
| LCP600080 | ZZ-080 | 80mm |
| LCP600085 | ZZ-085 | 85mm |
| LCP600090 | ZZ-090 | 90mm |
| LCP600095 | ZZ-095 | 95mm |
| LCP600100 | ZZ-100 | 100mm |
| LCP600105 | ZZ-105 | 105mm |
| LCP600110 | ZZ-110 | 110mm |
| LCP600115 | ZZ-115 | 115mm |
| LCP600120 | ZZ-120 | 120mm |
Compression Screw
Tornillo de Compresion
| Ref. No. Ti | Ref. No. SS | Length |
|---|---|---|
| LCP600000 | ZZ-000 | 36mm |
FDA 510K CLEARED
74. Cortical Screw, Dia - 2.4mm - Self Tapping
Tornillo Cortical, Dia - 2.4 mm - Autoroscante.
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 701.06ST-Ti | 701.06ST | 06mm |
| 701.08ST-Ti | 701.08ST | 08mm |
| 701.10ST-Ti | 701.10ST | 10mm |
| 701.12ST-Ti | 701.12ST | 12mm |
| 701.14ST-Ti | 701.14ST | 14mm |
| 701.16ST-Ti | 701.16ST | 16mm |
| 701.18ST-Ti | 701.18ST | 18mm |
| 701.20ST-Ti | 701.20ST | 20mm |
| 701.22ST-Ti | 701.22ST | 22mm |
| 701.24ST-Ti | 701.24ST | 24mm |
| 701.26ST-Ti | 701.26ST | 26mm |
| 701.28ST-Ti | 701.28ST | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 701.30ST-Ti | 701.30ST | 30mm |
| 701.32ST-Ti | 701.32ST | 32mm |
| 701.34ST-Ti | 701.34ST | 34mm |
| 701.36ST-Ti | 701.36ST | 36mm |
| 701.38ST-Ti | 701.38ST | 38mm |
| 701.40ST-Ti | 701.40ST | 40mm |
| 701.42ST-Ti | 701.42ST | 42mm |
| 701.44ST-Ti | 701.44ST | 44mm |
| 701.46ST-Ti | 701.46ST | 46mm |
| 701.48ST-Ti | 701.48ST | 48mm |
| 701.50ST-Ti | 701.50ST | 50mm |
75. Cortical Screw, Dia - 2.7mm - Self Tapping
Tornillo Cortical, Dia - 2.7 mm - Autoroscante.
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 603.06ST-Ti | 603.06ST | 06mm |
| 603.08ST-Ti | 603.08ST | 08mm |
| 603.10ST-Ti | 603.10ST | 10mm |
| 603.12ST-Ti | 603.12ST | 12mm |
| 603.14ST-Ti | 603.14ST | 14mm |
| 603.16ST-Ti | 603.16ST | 16mm |
| 603.18ST-Ti | 603.18ST | 18mm |
| 603.20ST-Ti | 603.20ST | 20mm |
| 603.22ST-Ti | 603.22ST | 22mm |
| 603.24ST-Ti | 603.24ST | 24mm |
| 603.26ST-Ti | 603.26ST | 26mm |
| 603.28ST-Ti | 603.28ST | 28mm |
Also Available in Star Head
| Ref. No. Ti Titanio |
Ref. No. SS Acero inoxidable |
Length Longitud |
|---|---|---|
| 603.30ST-Ti | 603.30ST | 30mm |
| 603.32ST-Ti | 603.32ST | 32mm |
| 603.34ST-Ti | 603.34ST | 34mm |
| 603.36ST-Ti | 603.36ST | 36mm |
| 603.38ST-Ti | 603.38ST | 38mm |
| 603.40ST-Ti | 603.40ST | 40mm |
| 603.42ST-Ti | 603.42ST | 42mm |
| 603.44ST-Ti | 603.44ST | 44mm |
| 603.46ST-Ti | 603.46ST | 46mm |
| 603.48ST-Ti | 603.48ST | 48mm |
| 603.50ST-Ti | 603.50ST | 50mm |
Bone Screws Manufacturer in India
We are a trusted Bone Screws Manufacturer in India offering high-quality bone screws designed for safe and reliable fracture fixation. As an experienced Orthopedic Bone Screws Manufacturer in India, we manufacture products that support strong bone stability and consistent surgical results. Our team also operates as a Surgical Bone Screws Manufacturer in India, delivering precision-engineered screws that meet the needs of hospitals surgeons and medical distributors. With advanced production facilities we serve global markets as a dependable Titanium Bone Screws Manufacturer in India and Stainless Steel Bone Screws Manufacturer in India, ensuring durability biocompatibility and compliance with international quality standards. As a professional Bone Screws Manufacturer in India, we focus on quality control material strength and consistent performance.
Healthcare providers and distributors choose us as their preferred Bone Screws Manufacturer in India because we deliver value reliability and timely supply. Our bone screws suit trauma care orthopedic surgery and hospital procurement needs across multiple medical sectors. We support bulk orders private labeling and export requirements while maintaining competitive pricing and strict quality checks. By choosing our services you partner with a Bone Screws Manufacturer in India that understands clinical needs supports long-term business growth and builds trust through proven manufacturing expertise.
Bone Screws Supplier in India
We are a reliable Bone Screws Supplier in India providing high-quality bone screws for orthopedic and trauma surgery needs. As a trusted Stainless Steel Bone Screws Supplier in India, we supply durable and precision-made products that support strong fixation and long-term performance. We also serve as a dependable Cortical Bone Screws Supplier in India, offering screws designed for dense bone fixation and consistent surgical outcomes. Our experience as a Cancellous Bone Screws Supplier in India allows us to meet the needs of hospitals surgeons and distributors looking for secure fixation solutions. With strong sourcing and quality checks we stand out as a professional Bone Screws Supplier in India focused on reliability and clinical confidence.
Healthcare providers and distributors choose us as their preferred Bone Screws Supplier in India because we deliver quality consistency and timely supply. We actively support trauma care orthopedic surgery and medical procurement as a trusted Trauma Bone Screws Supplier in India serving multiple healthcare sectors. Our services suit hospitals surgical centers and global distributors who value stable supply competitive pricing and responsive support. By working with our team clients partner with a Bone Screws Supplier in India that understands medical requirements supports business growth and builds long-term trust.
Bone Screws Exporter in India
We are a trusted Bone Screws Exporter in India delivering high-quality bone screws to global healthcare markets. As a certified CE Marked Bone Screws Exporter in India we ensure international quality standards and consistent product reliability. We also operate as an Orthopedic Implants Bone Screws Exporter in India supporting trauma care and orthopedic surgery needs across hospitals and medical distributors. Our export capabilities allow us to serve as a dependable Bulk Bone Screws Exporter in India meeting large volume requirements with timely delivery. With strong manufacturing support we also supply global buyers as a reliable Titanium Bone Screws Exporter in India focused on strength safety and performance. As an experienced Bone Screws Exporter in India we focus on quality control and long-term partnerships.
Healthcare institutions and distributors choose us as their preferred Bone Screws Exporter in India because we deliver consistency value and responsive service. Our products support trauma surgery orthopedic procedures and medical supply chains across multiple industries. We handle export documentation bulk orders and international logistics with care and precision. By working with our team clients partner with a Bone Screws Exporter in India that understands global market needs builds trust through quality and supports sustainable business growth.
